Light Gauge Steel Deck Framing

This type of framing is an alternative to traditional wood framing and is known for its strength, durability, and versatility.

Material: Light gauge steel framing is made from cold-formed steel, which is processed at room temperature to maintain its structural integrity. The steel sheets are typically galvanized to resist corrosion.

Components: The framing system includes studs, joists, tracks, and other components, all formed from light gauge steel. These components are assembled to create the structural framework of a building.

Advantages:

--Strength: Light gauge steel framing provides a high strength-to-weight ratio, offering a robust and durable structural solution.
Consistency: The manufacturing process ensures uniformity in dimensions and material quality, resulting in consistent and reliable components.
--Fire Resistance: Steel framing is non-combustible and can provide better fire resistance compared to traditional wood framing.
--Termite Resistance: Unlike wood, steel is not susceptible to termite damage.

Construction Process:

Design: Light gauge steel framing systems are designed using computer-aided design (CAD) software, ensuring precise specifications for each component.

Assembly: Components are typically assembled on-site, with studs, tracks, and other elements connected using screws or other fasteners.

Installation: The assembled frame is then installed to create the structural framework for floors and roofs.




OEM



Customized galvanized steel frames depend on your drawing to save installation cost

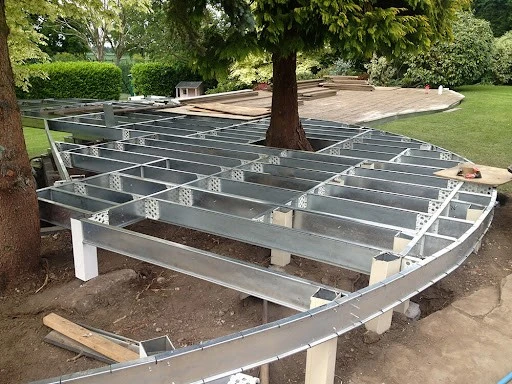

galvanized deck framing

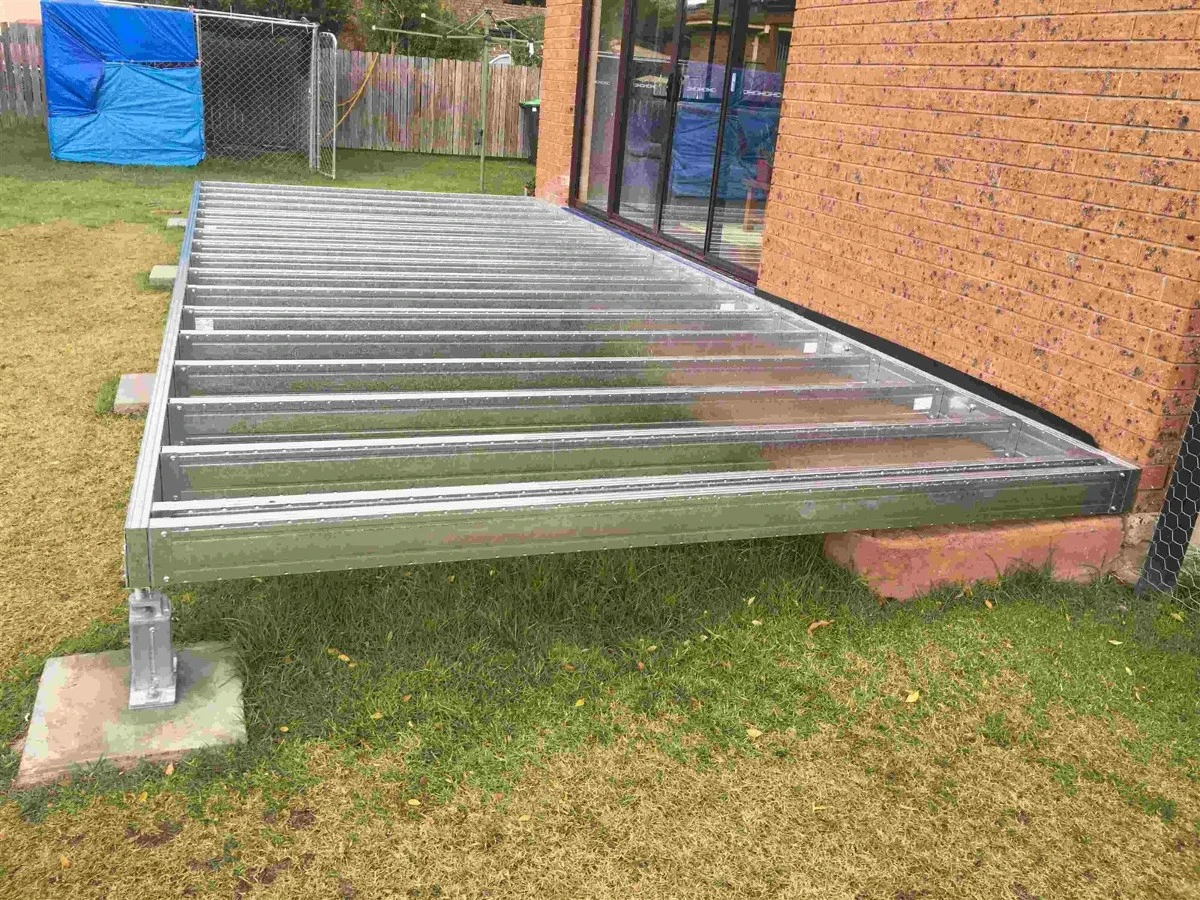

metal deck joist system

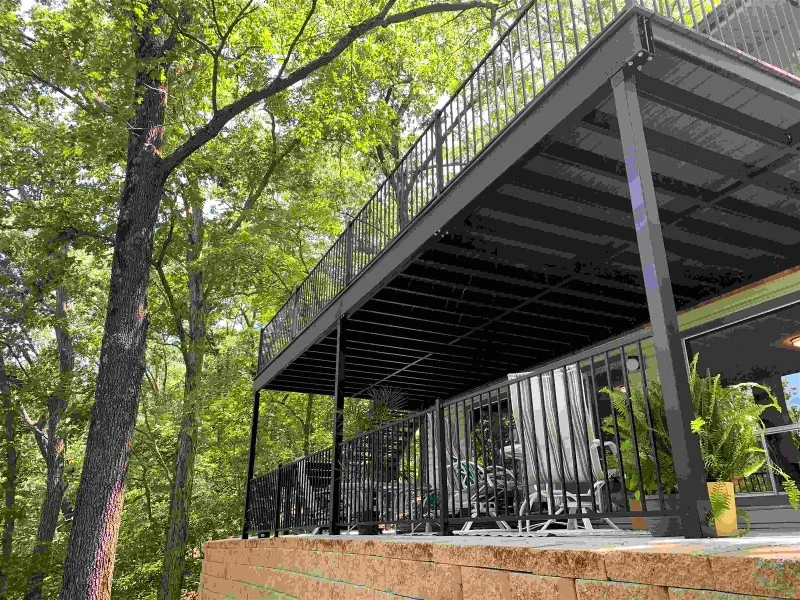

metal stud deck framing

Product name: light gauge steel deck framing

Installation Site: Open Field/Ground

Material: Q235

Surface: Hot Dip Galvanization

Ground Pipe diameter: 76mm/89mm

Round flange diameter:180mm/200mm/220mm

Tickness:2.75mm/3mm/3.5mm

Length: 500mm-2000mm/customized

Temperature Range: -50℃to 60℃

Series: Flange top, Tube top

Warranty: 10 years

Service life: 20 years

Galvanized ground screw piles, bearers, joists, brackets, and screws are all included.

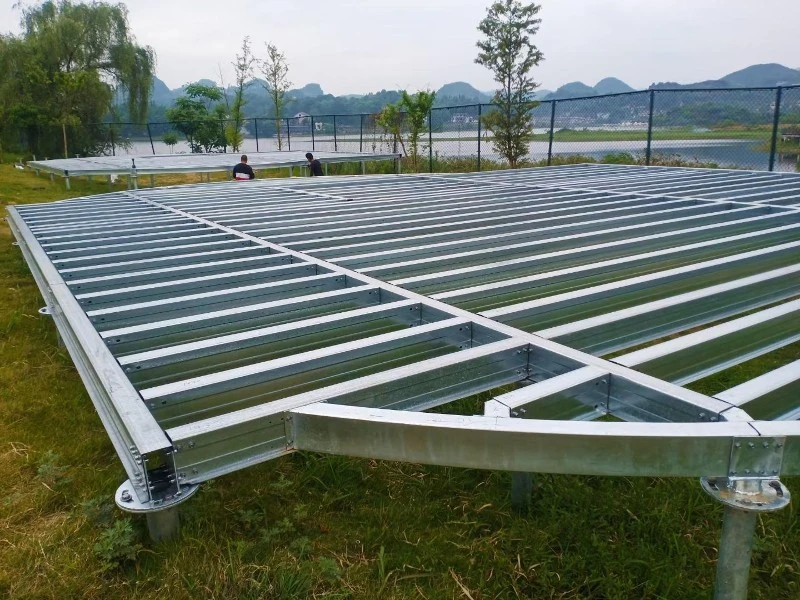

Evolution steel deck framing

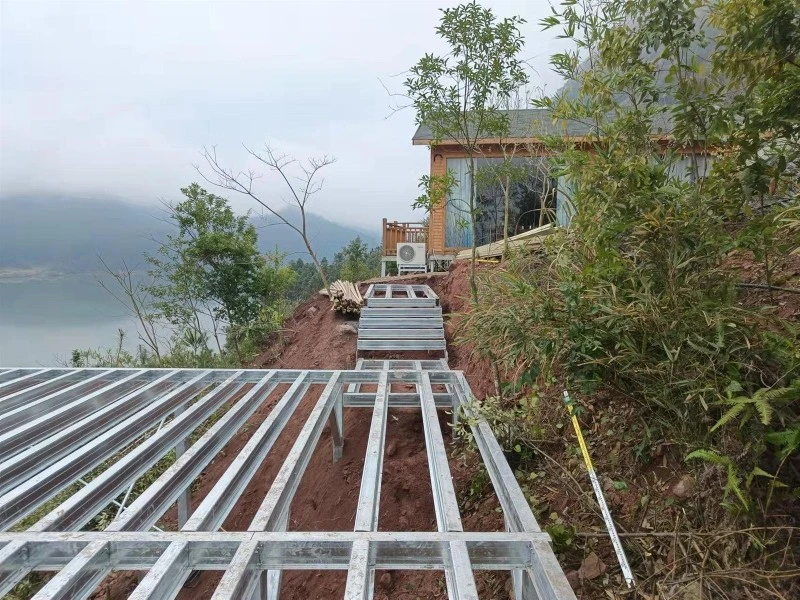

Galvanized steel deck framing



FAQ



Q1: Are you a manufacturer?
A: Yes, we are a manufacturer, and we have our own factory located in Xiamen, China.



Q2: Do you have any MOQ limit?
A : We don't have a request on MOQ, 1pc for sample checking is available.

Q3 : How do you ship the goods and how long does it take to arrive?
A :  For big orders, we usually ship by sea, it will take 7~30 days to arrive, depend on distance.

Q4 : Is it OK to print my logo on products?
A : Yes. Please inform us formally before our production and confirm the design.
