Steel Frame Deck Design

Product Description

Steel Frame Deck Design involves creating a structural framework using steel components to support decking and other building elements. The steel frame typically incorporates materials like Q235 steel, and features components such as galvanized ground screw piles, bearers, joists, brackets, and screws. The design includes detailed parameters such as ground pipe diameters (76 mm or 89 mm), round flange diameters (180 mm, 200 mm, or 220 mm), and thicknesses (2.75 mm, 3 mm, or 3.5 mm) to meet specific structural requirements.

Product Advantages

• Increased Corrosion Resistance: One of the key benefits of Steel Frame Deck Designs is the application of hot-dip galvanizing as a surface treatment. This process coats the steel with a layer of zinc, which provides excellent corrosion resistance and extends the life of the frame. As a result, the steel frame maintains its integrity and performance over time, with a lifespan of up to 20 years and a 10-year warranty.
• Versatility and Customization: Steel Frame Deck Designs are highly versatile and can be adapted to a variety of installation scenarios and structural needs. The design includes components such as ground screw piles, load-bearing beams, joists, brackets and screws, all of which can be customized to meet specific project requirements.
• Ease of Installation: The prefabricated nature of steel frame components simplifies the installation process. With pre-cut and pre-welded parts, installation is faster and more efficient compared to other methods. This not only reduces labor costs but also minimizes the time required for project completion.
• Adaptability to Environmental Conditions: Steel Frame Deck Designs are engineered to withstand a wide temperature range, from -50℃ to 60℃. This adaptability ensures that the frame performs reliably in extreme weather conditions, including very cold or hot climates.

Product Applications

• Commercial Building Structures: Steel frame deck designs are widely used in commercial buildings due to their high load-bearing capacity and durability. For example, in office buildings and shopping malls, steel frames provide large open spaces and the necessary support for heavy equipment.
• Industrial Facilities: The strength of steel combined with hot-dip galvanizing for corrosion resistance makes these decks suitable for environments involving heavy machinery and equipment. It can withstand temperatures ranging from -50°C to 60°C, making it highly versatile and ensuring reliability in extreme cold and hot conditions.
• Bridges and Infrastructure: The high strength-to-weight ratio of steel beams allows for the construction of long-span bridges and viaducts. The precision laser-cut and welded steel parts ensure a perfect fit of the components, ensuring structural integrity and safety.
• Outdoor platforms and stages: The sturdy design of the steel frame can support large audiences and heavy equipment, making it ideal for concerts, exhibitions and other public events. The weather resistance of galvanized steel makes the deck stable and safe in various weather conditions.

Product Name: Steel Frame Deck Design

Installation Site: Open Field / Ground

Material: Q235

Surface Treatment: Hot Dip Galvanization

Ground Pipe Diameter: 76 mm / 89 mm
Round Flange Diameter: 180 mm / 200 mm / 220 mm
Thickness: 2.75 mm / 3 mm / 3.5 mm
Length: 500 mm - 2000 mm (customized)

Temperature Range: -50℃ to 60℃

Series: Flange Top, Tube Top

Warranty: 10 years

Service Life: 20 years

Included Components: Galvanized ground screw piles, bearers, joists, brackets, and screws.

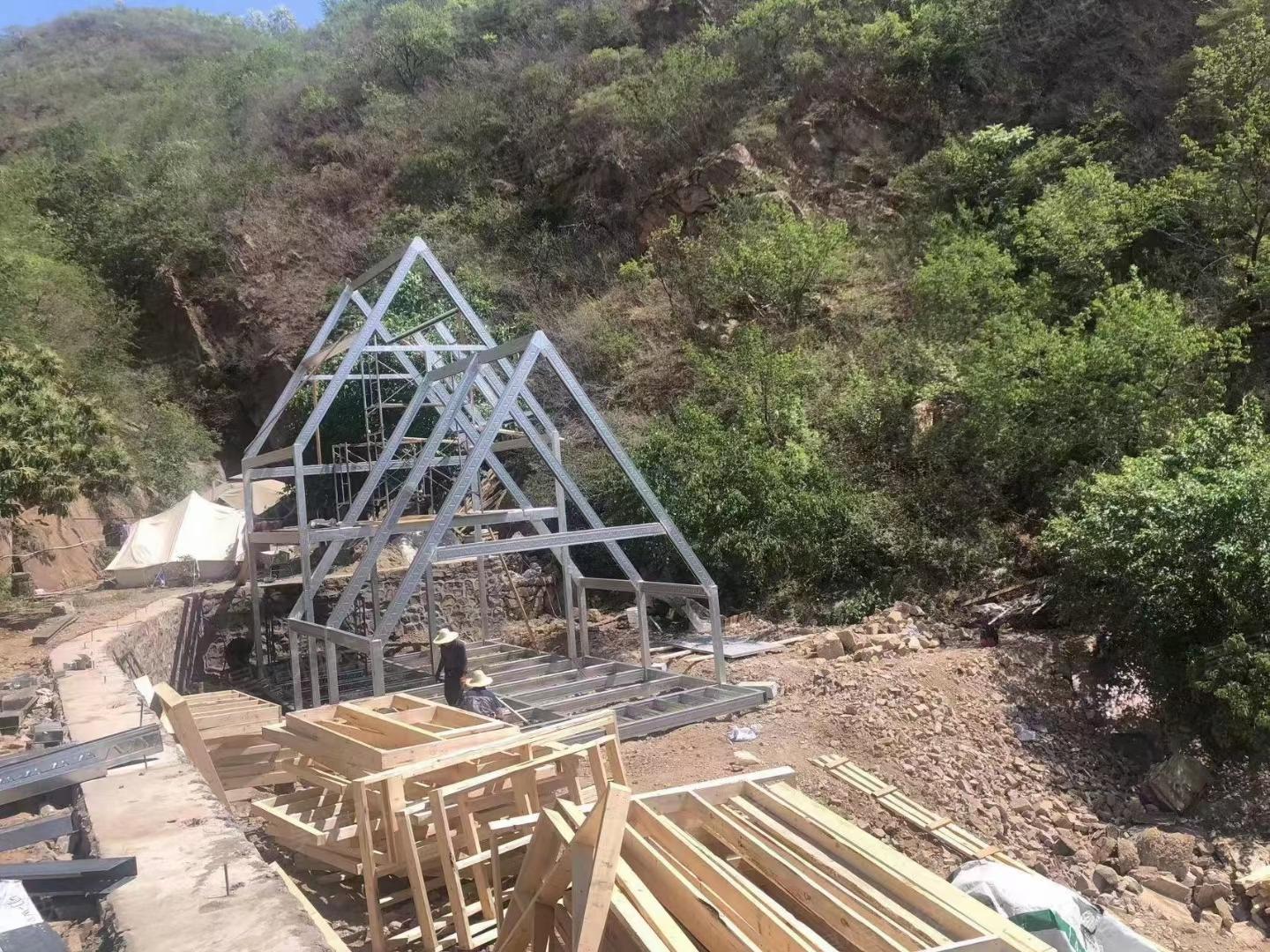

raised steel decking frame

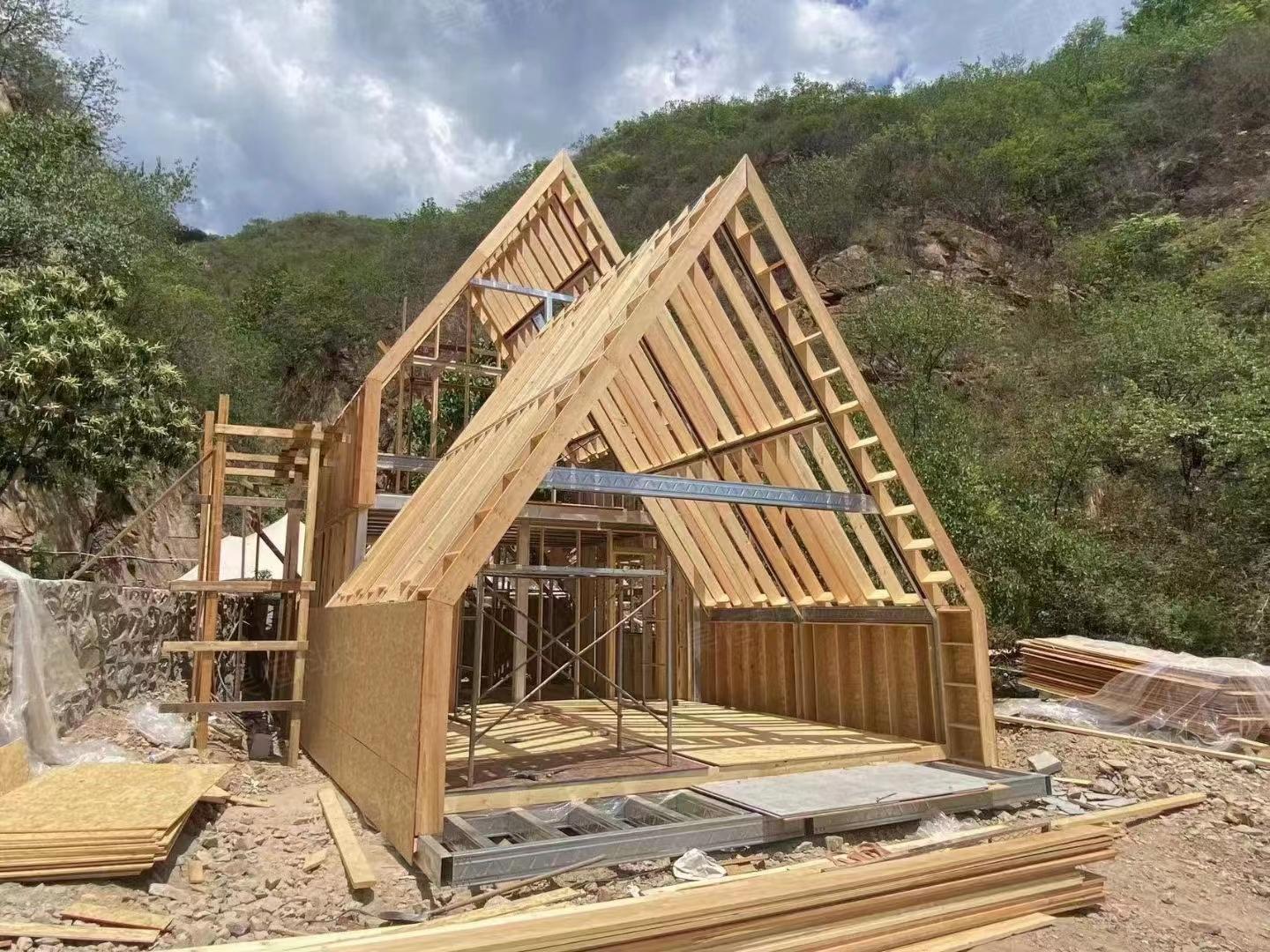

wood deck on the steel frame









FAQs



1. How does Steel Frame Deck Design compare to traditional wood decking in terms of durability?
Steel, particularly when hot-dip galvanized, provides superior resistance to environmental factors such as moisture, pests, and temperature fluctuations. Unlike wood, which can warp, rot, or be damaged by insects, steel maintains its structural integrity over time.



2. How does the size and thickness of steel components affect Steel Frame Deck Design?
Larger diameters and thicker steel, such as ground pipes with diameters of 76 mm or 89 mm and thicknesses up to 3.5 mm, provide greater strength and load-bearing capacity. This ensures that the deck can support heavier loads and withstand various stresses.



3. What are the most common applications of Steel Frame Deck Design in industrial facilities?
Steel Frame Deck Design's strength and durability make it ideal for supporting heavy machinery, equipment, and storage racks. Besides, steel frames can be used to construct solid structures for industrial tanks, conveyor systems, and workstations.



4. What are the environmental considerations when implementing Steel Frame Deck Design in outdoor constructions?
The steel must be properly galvanized to prevent rust and corrosion from exposure to moisture, UV radiation, and temperature fluctuations.



5. How does Steel Frame Deck Design contribute to the overall energy efficiency of a building?
Steel Frame Deck Design contributes to the overall energy efficiency of a building by providing a strong and stable structure that supports energy-efficient insulation and cladding systems. The precision of steel framing allows for accurate fitting of insulation materials, reducing thermal bridging and improving the building's thermal performance.



6. What are the typical installation processes for Steel Frame Deck Design?
First, the steel components are delivered to the site and inspected for quality. Next, the steel frames are assembled, often using bolted or welded connections, and positioned according to the design specifications. The components are then secured, and any necessary adjustments are made to ensure proper alignment and stability. Finally, the deck is inspected to confirm that it meets safety and performance standards before being put into use.



7. Can Steel Frame Deck Design be customized for unique architectural features?
Yes. The versatility of steel allows for modifications in size, shape, and configuration to meet specific design requirements. Customization options include varying the dimensions of steel components, incorporating decorative elements, and adapting the design to fit complex architectural layouts.



8. How does the surface treatment, such as hot-dip galvanization, impact the performance of Steel Frame Deck Design?
Hot-dip galvanization provides a protective zinc coating that shields the steel from corrosion caused by moisture, chemicals, and environmental factors. The durability of the galvanization reduces maintenance needs and helps maintain the structural integrity of the steel frame over time.
